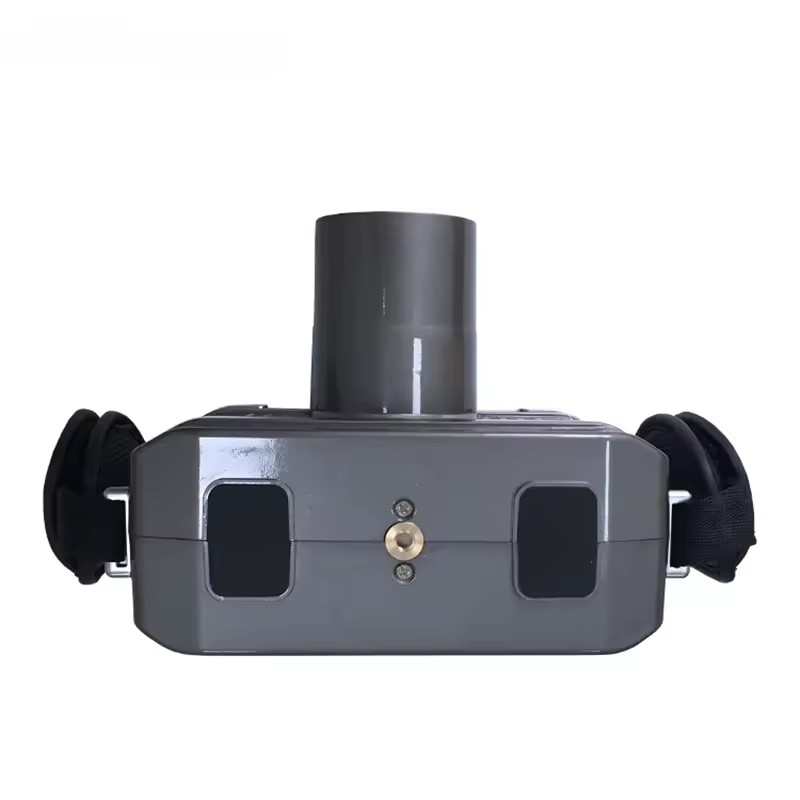

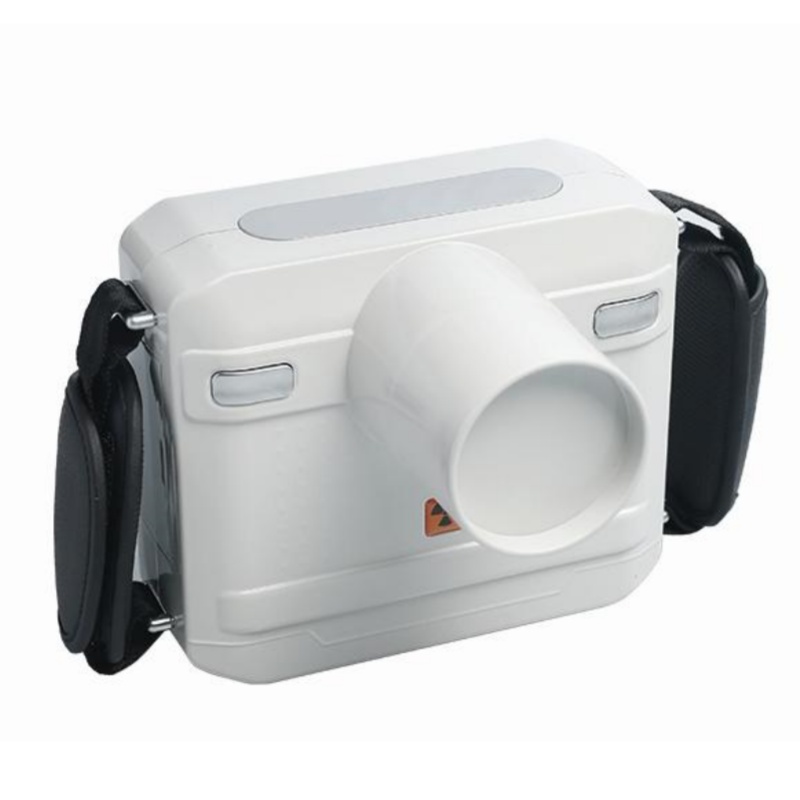

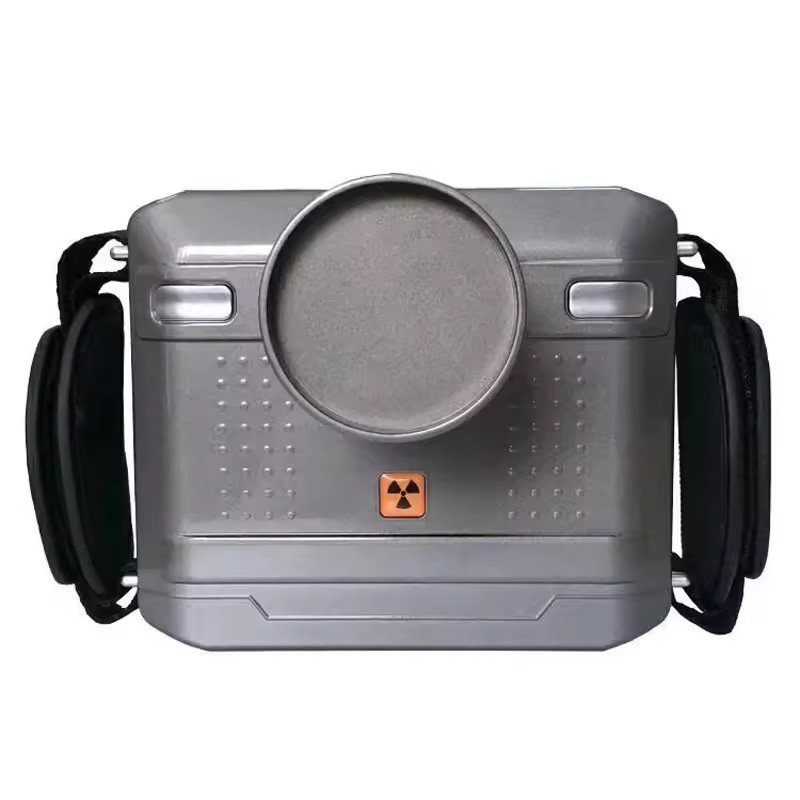

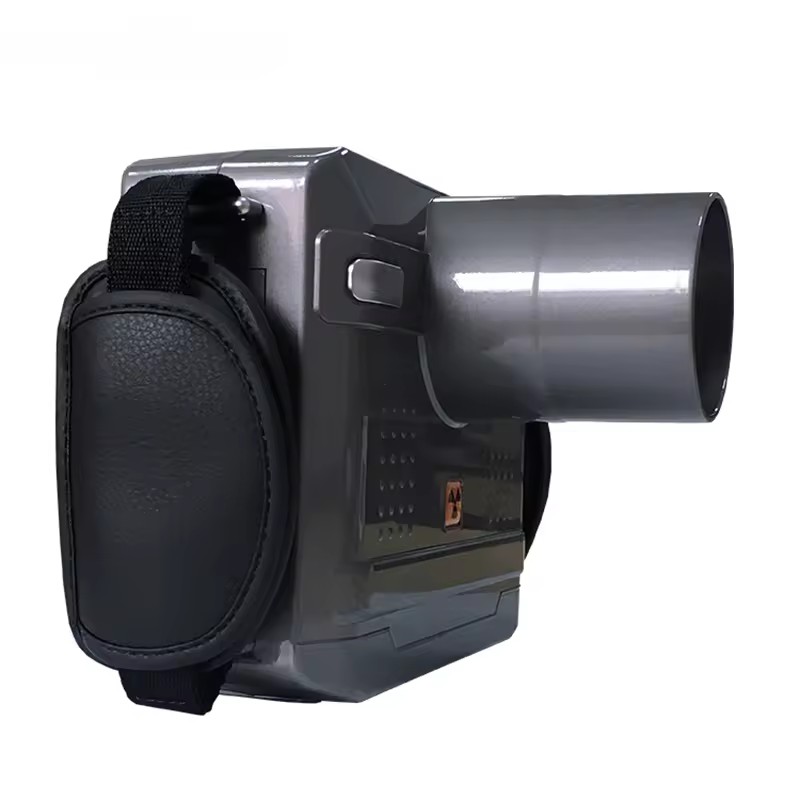

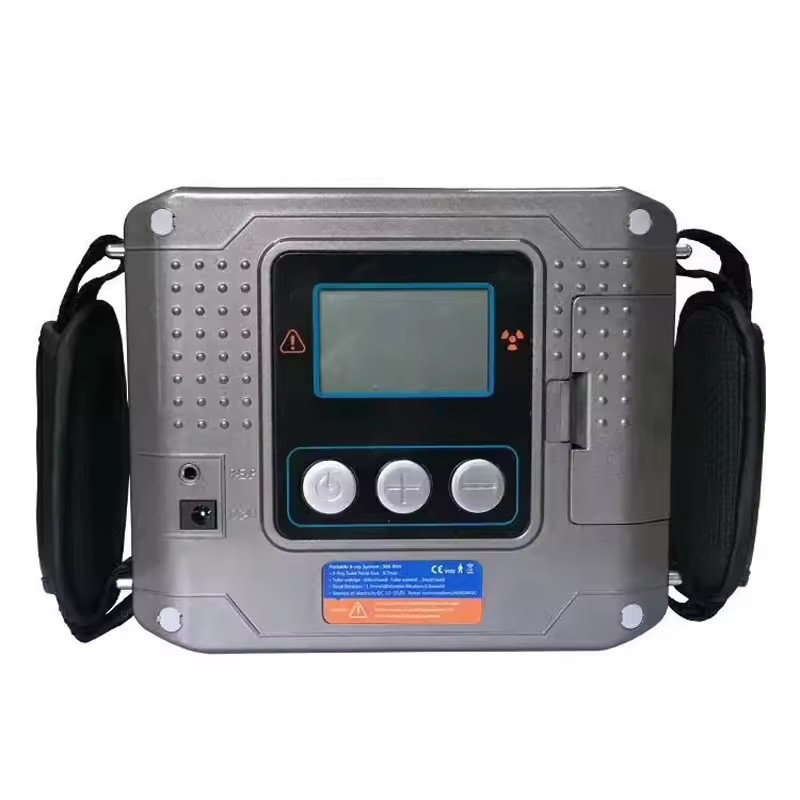

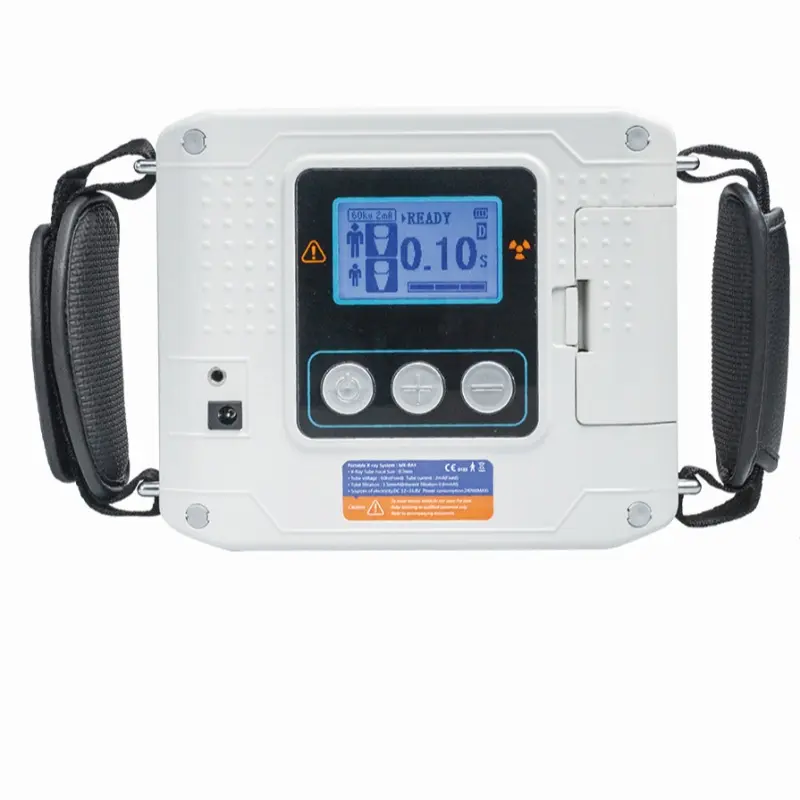

CE approved mobile dental x ray machine

Specifications:

MODEL:AZ-XR04

TUBE CURRENT:2mA

EXPOSURE TIME: 0.02--2.0S

FREQUENCY: 30KHz

TUBE FOCUS: 0.3mmx0.3mm

RATED POWER: 60VA

BATTERY: DC14.8V 6400mAh

CHARGER INPUT VOLTAVE: DC16.8V

AMBIENT TEMPERATURE: 5-40℃

RELATIVE TEMPERATURE: <75%RH

NET WEIGHT: 2.5KG

Features of dental x ray machine

1.The device is DC high frequency portable dental x-ray unit, small, light and nearly no radiation.

2.There are manual buttons installed on the surface of shell, operate easily. All of the components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.

3.The unit mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on, is indispensable in daily life clinic, especially for dental implant surgery.

4. The battery is durability, it can take about five hundred images after full charged ,and it can be charged and discharged for one thousand times in its life.

5. It can be connected with intra-oral digital x-ray imaging system.

Functional Character of dental x ray machine:

* Using the international advanced technology, efficient integrated design, high efficiency, low radiation.

* Using microcomputer intelligent control, not only remote controlled exposure, but more powerful function of low voltage alarm

and high voltage protection.

* Micro focus technology, much more clear image and accurate diagnosis.

* The base has two modes of mobile and fixed, pneumatic lift seat ensure more convenient for dentist and more comfortable for patient.

* Can use light room dental film, imaging in one minute, maximum convenient dentist to diagnose.

* Can connect to dental digital imaging system, that is indispensable for clinicians to diagnose and root canal filling.
